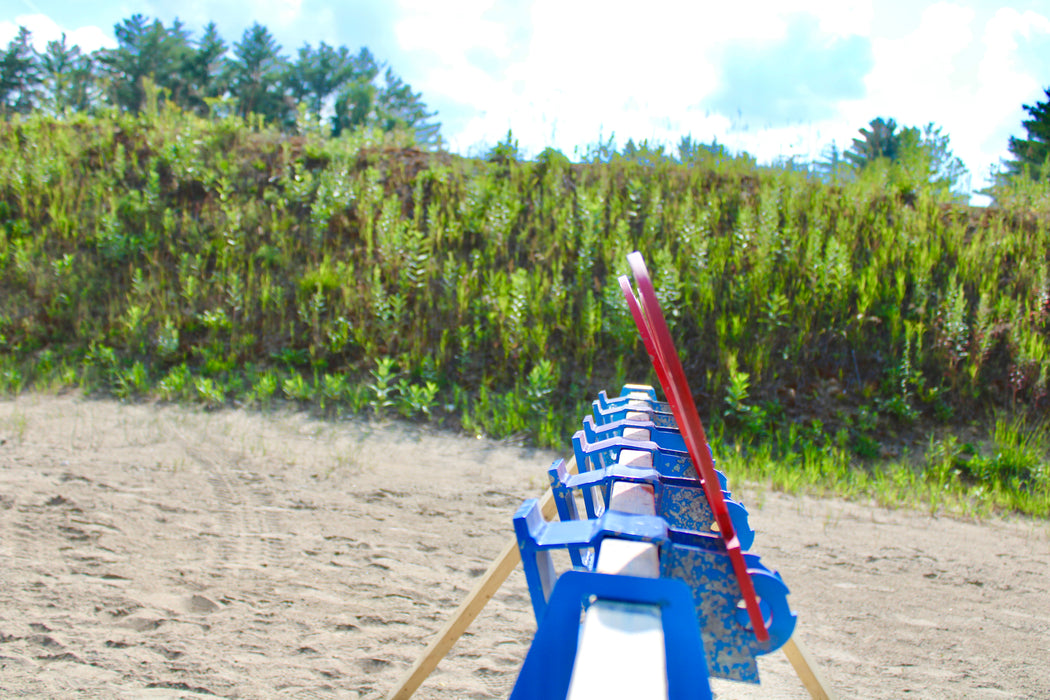

Hand Gun Rated Plate Rack Bundle

Hand Gun Rated Plate Rack Bundle

Plate Rack Bundle Includes Everything You Need: (Purchase 2x4s Separately)

  • (1) Horizontal 2x4 Stand (Item ID/SKU 990)
  • (6) Knock Down Plate Rack Brackets & Paddles (Item ID/SKU 992)
    • Hand Gun rated paddle is 8" Diameter, 5/16" thick AR500 steel
    • Paddles are shot to knock down to train speed & accuracy
    • Each bracket has an AR500 3/8" guard in front for protecting the bracket
    • Brackets simply slide over any 2x4 wood or steel tube (not included)
    • Recommended spacing is 12" on paddle center between paddles
  • Shoot paddles in the down position to "Flip Up" !!
    • This feature is caliber & distance dependent & very fun
    • Smaller paddles available for easier "Flip Up" or more challenge
    • Thicker paddles available rifles of all calibers
  • Bracket is fully rifle rated.  Want to shoot rifles, just insert the paddle with recommended thickness for your caliber sold separately

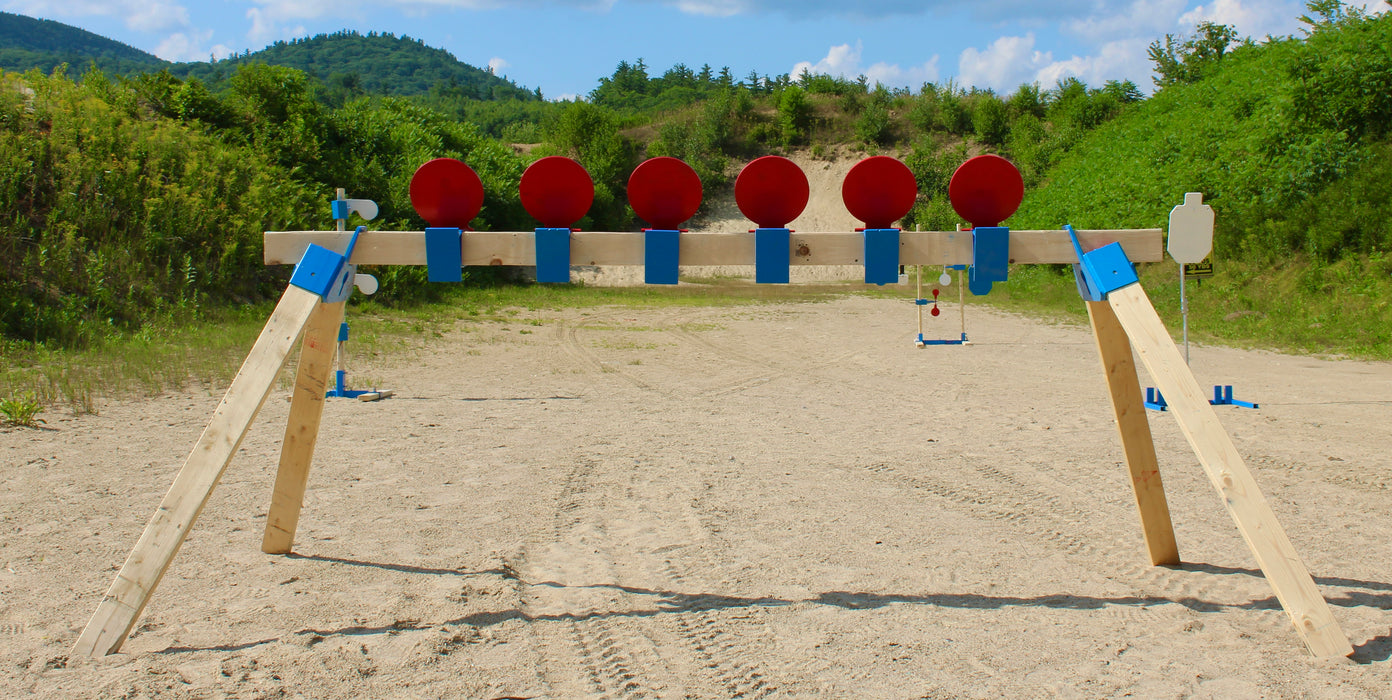

  • Use 3 standard eight foot 2x4s.  Cut two in half for the four legs of 4 foot each.  Use the third for your cross beam
  • Want to protect your 2x4 cross beam?  Check out our AR500 Plate Rack Armor for commercial range use.

Save 5% Save 5%
$479.96
$479.96 - $479.96
$479.96
$455.99
$455.99 - $455.99
$455.99
Product FAQ's

What calibers can this handgun-rated plate rack bundle handle?

The handgun-rated version of our plate rack bundle features 5/16" thick certified AR500 steel. It is explicitly designed to handle all standard centerfire handgun calibers—including 9mm, .40 S&W, and .45 ACP—at a minimum safe shooting distance of 10 yards. Do not shoot this 5/16" setup with centerfire rifle calibers, steel core ammo, or shotgun slugs.

What specific items are included in this plate rack bundle?

This complete reactive bundle includes everything you need to start shooting, minus the wood. It comes with our heavy-duty commercial-grade 990-series Horizontal 2x4 Stand (saw horse stand) and six reactive Knock Down Plate Rack Brackets complete with their matching AR500 steel paddles.

How does the reactive "knockdown" resetting action work?

Our clever mechanical design completely eliminates the need for annoying reset ropes, springs, or long walks downrange. When a paddle is struck cleanly by a handgun round, it breaks away and knocks down flat backward over the horizontal 2x4 bar. To reset the plate rack instantly, you simply shoot the down facing paddle for shoot to reset   Our unique mechanism allows the shooter to flip all the fallen plates back up to the vertical starting position.

Can I upgrade or expand this plate rack system later?

Yes, the Bash Target Supply system is completely modular and scalable. Because the knockdown brackets slide onto a standard horizontal 2x4 lumber piece, you can easily add more brackets later to grow your target line. You can also mix and match by swapping the standard round plates out for our reactive bowling pin paddles or upgrading to thicker 3/8" rifle-rated brackets on the exact same stand frame.

Does this bundle include the 2x4 lumber and base legs?

No, the bundle does not include the standard 2x4 wood studs legs for the base stand. Shipping large pieces of common lumber and framing steel across the country raises shipping fees unnecessarily. Purchase 3 standard 8' 2x4s. Cut two in half for your four legs, 4' each. Use the third 8' 2x4 for your horizontal cross beam that the plates slide onto.

Can I add AR500 protectors to this plate rack to protect and extend the life of the 2x4 cross bar?

Yes, you can add our AR500 Steel plate rack armor brackets at any time.  They are 8.5” wide to set your target plates at exactly 12” on center according to competition rules.  The guards are fixed at a 20 degree downward angle to safely deflect bullets to the ground.

Bring professional-grade speed, accuracy, and tactical realism to your range sessions with the Hand Gun Rated Plate Rack Bundle from Bash Target Supply. Designed for serious training, law enforcement drills, and dynamic marksmanship, this complete reactive system completely eliminates the need for annoying reset ropes, springs, or long walks downrange.

Built around our heavy-duty commercial-grade Horizontal 2x4 Stand and six reactive Knock Down Plate Rack Brackets, this bundle delivers instant feedback. When a paddle is struck cleanly by a handgun round, it breaks away and knocks down flat backward over the horizontal bar. Even better, our clever mechanical design allows you to shoot the down-facing paddle to instantly "Flip Up" and reset your plates!

Key Features & Specifications:
Complete Ready-to-Shoot Bundle: Includes (1) Horizontal 2x4 Stand (SKU 990) and (6) Knock Down Plate Rack Brackets complete with matching 8" diameter AR500 steel paddles (Purchase 2x4 lumber separately).

Handgun-Optimized AR500 Steel: Fitted with 5/16" thick certified AR500 steel paddles designed to handle standard centerfire handguns (9mm, .40 S&W, .45 ACP) at safe training distances.

Shoot to Knock Down & Flip Up: Innovative reactive action lets you knock targets down on impact and shoot them in the down position to flip them back upright.

Armored Bracket Protection: Each bracket features an integrated 3/8" AR500 shield guard in front to protect the mechanism from stray spall and impacts.

Modular & Scalable Design: Easily slide brackets over standard horizontal 2x4 lumber. Expand your target array, swap plates for bowling pin paddles, or upgrade to rifle-rated thicknesses on the exact same frame.
